OxyRevo Sitting Type Hard Hyperbaric Chamber Space60 1.5/1.6ATA

$65,000.00

OXYREVO Sitting Type Hard Hyperbaric Chamber Space60 – Unique Design, Max Pressure 1.5ATA or 1.6ATA with Adjustable Pressure Valve. Free Shipping*

Description

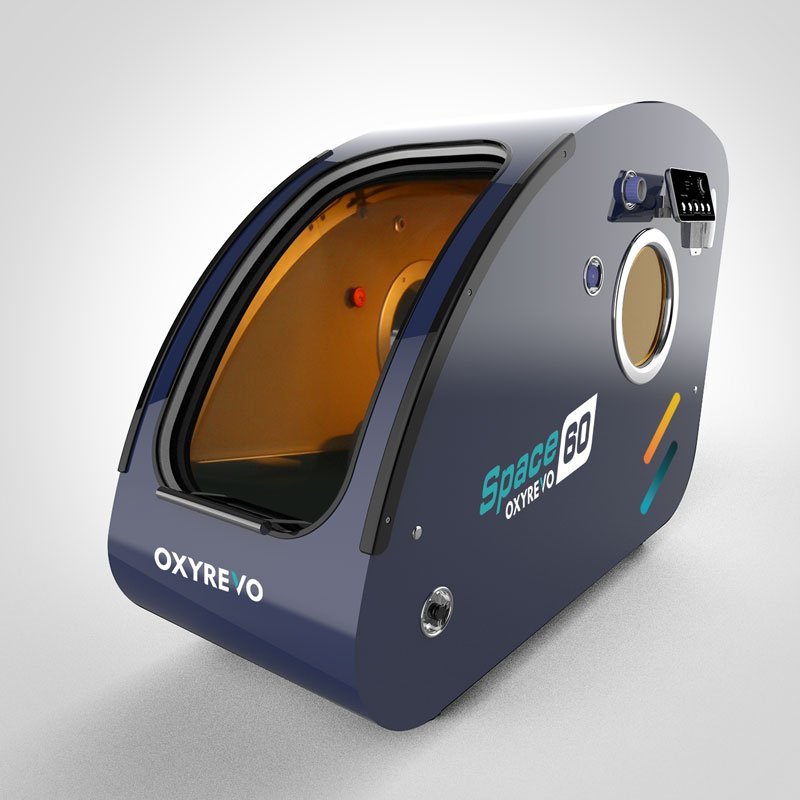

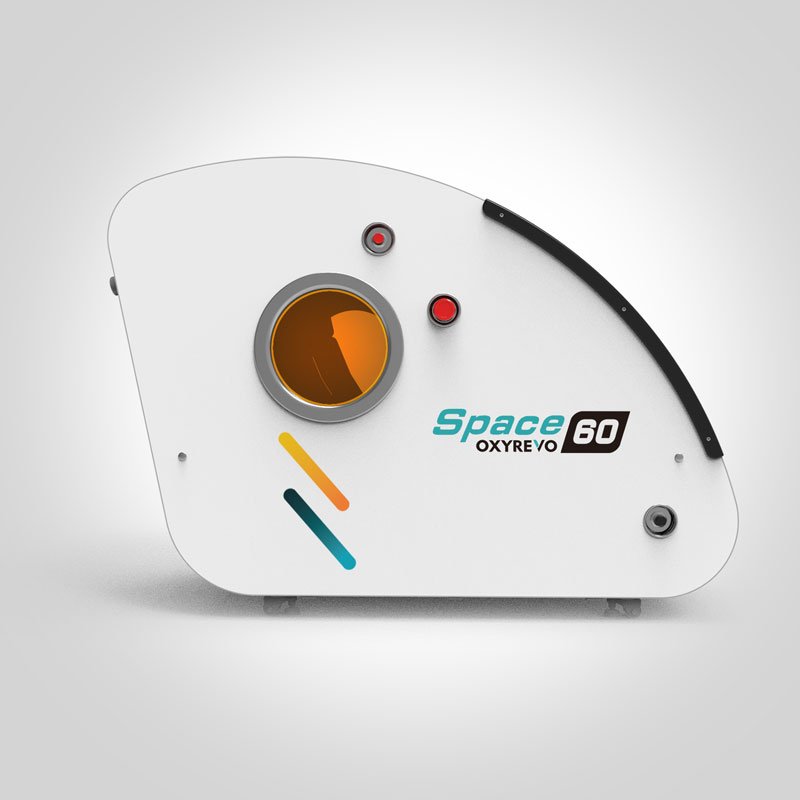

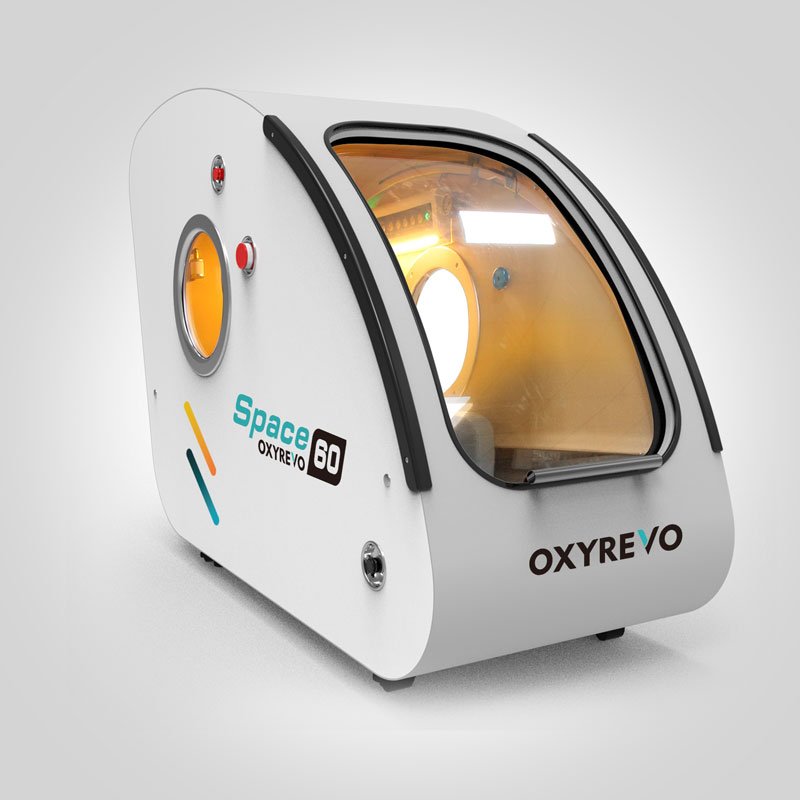

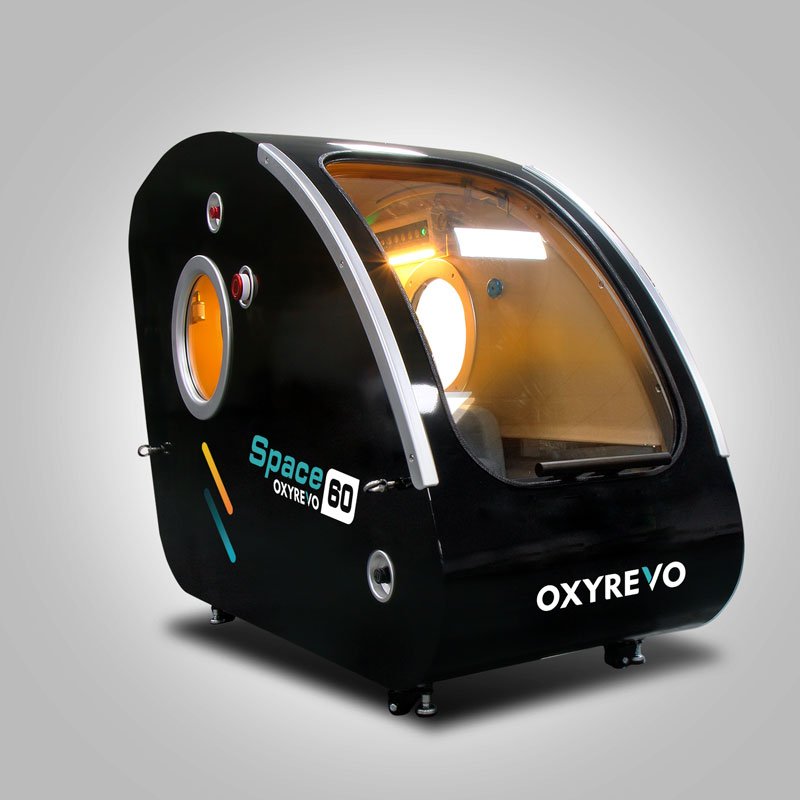

OXYREVO Hard Sitting Hyperbaric Chamber Space60 1.5ATA/1.6ATA

— HARD SHELL TYPE, SITTING DESIGN

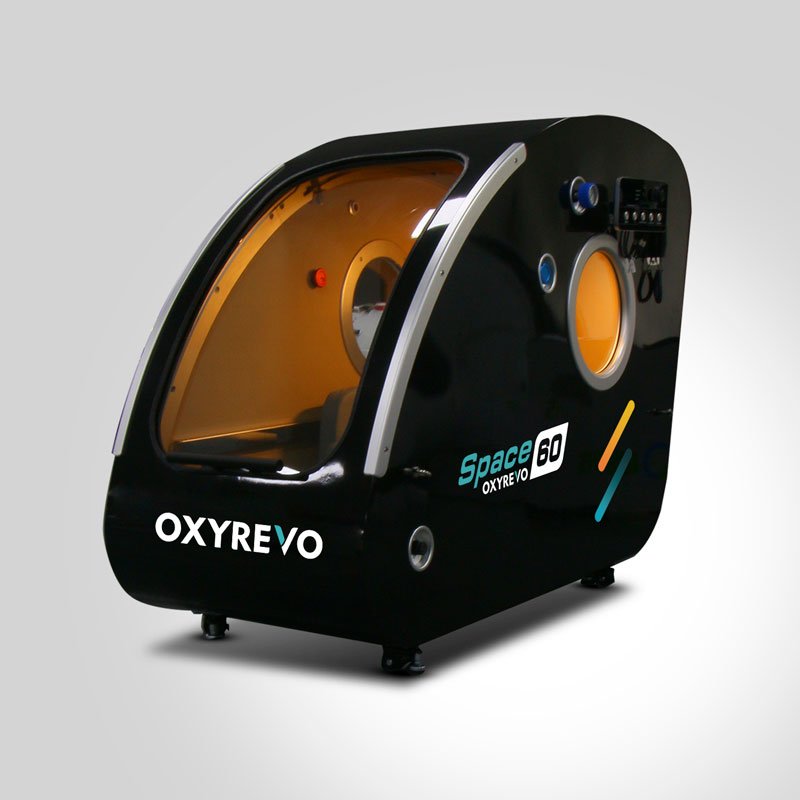

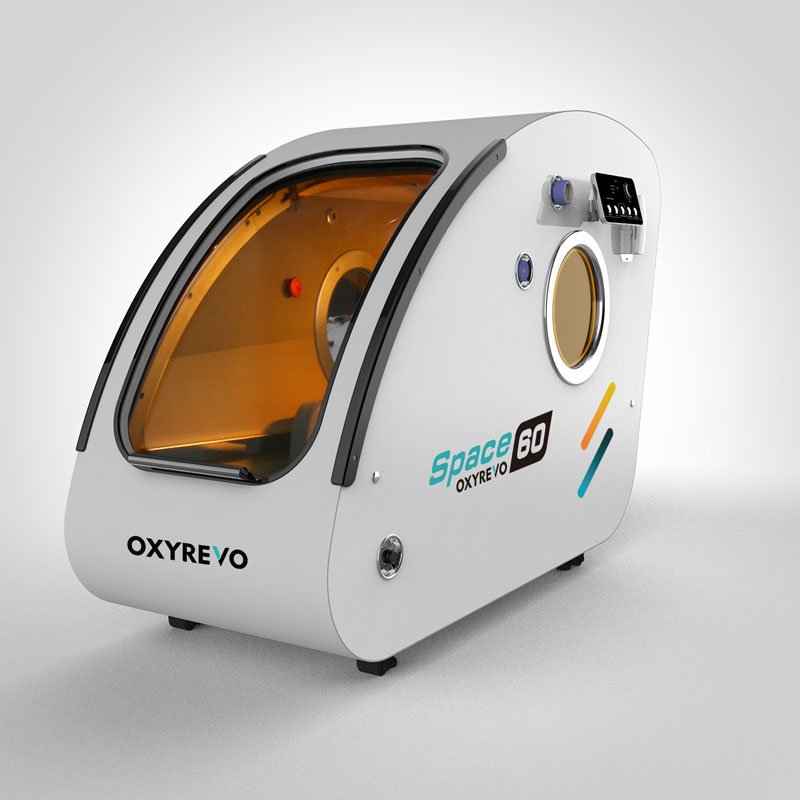

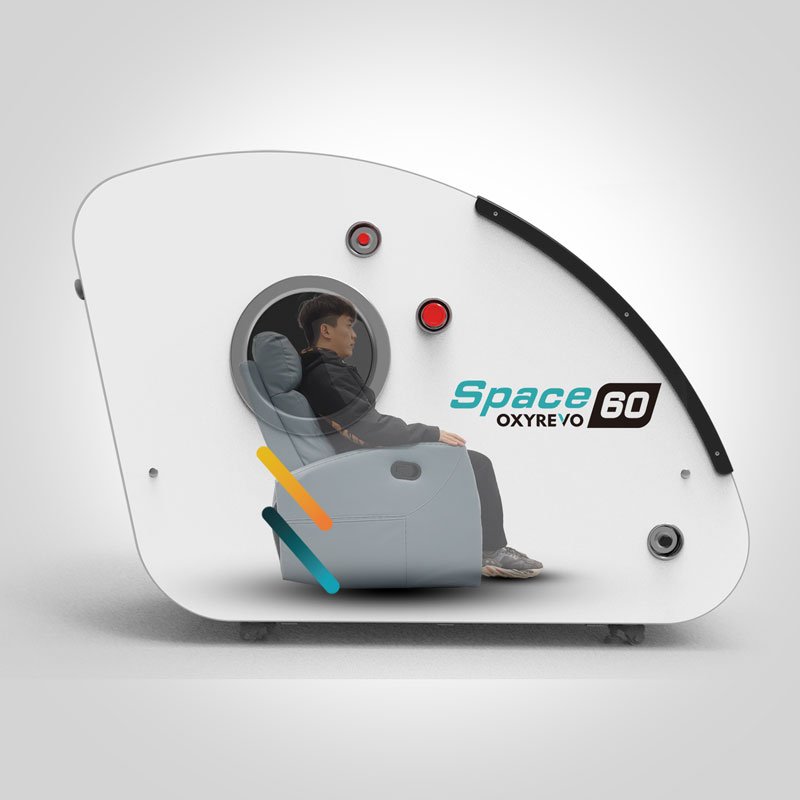

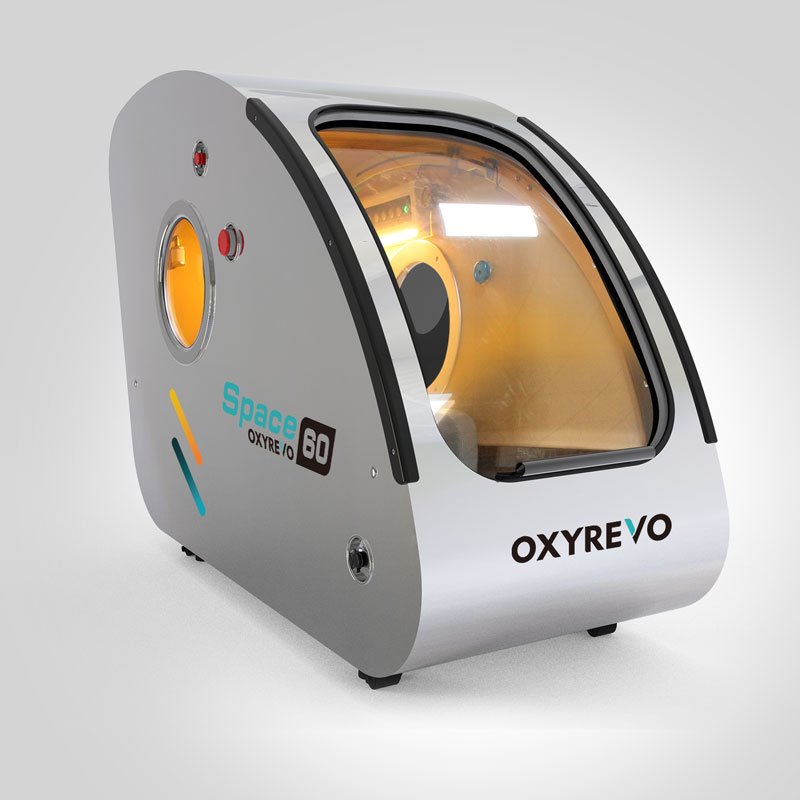

The OxyRevo Space60 1.5/1.6ATA hard sitting hyperbaric oxygen chamber, is a hard shell hyperbaric chamber designed for people to sit down inside, also being possible to recline comfortably with a premium folding sitting chair. Working pressure up to 1.5ATA or 1.6ATA. The 1.5/1.6ATA hard hyperbaric chambers are made by solid stainless steel and polycarbonate material. Equipped with a large transparent door in front, and two big transparent windows each side, making your chamber more bright to use and not claustrophobic. It is 200cm in length, making a very roomy space inside for a comfortable use. The OxyRevo Space60 chamber allows the users to use and operate the chamber alone without further assistance outside. The OxyRevo Space60 1.5/1.6ATA Hard Sitting Hyperbaric Oxygen Chamber is your best ideal hyperbaric oxygen chamber choice for better comfort and premium use, for home use and commercial places offering HBOT treatment.

Technical Specifications
WORKING PRESSURE: 1.5ATA or 1.6ATA (please advise us of your choice)
WEIGHT: 600KG /1323LBS
LENGTH: 200CM / 79INCHES​
WIDTH: 86CM / 34INCHES​
HEIGHT: 153CM / 60INCHES​
CHAMBER MATERIAL: STAINLESS STEEL
WINDOWS MATERIAL: POLYCARBONATE(FROM BAYER)
WINDOWS: 2 TRANSPARENT WINDOWS
OXYGEN PURITY: 90-97%

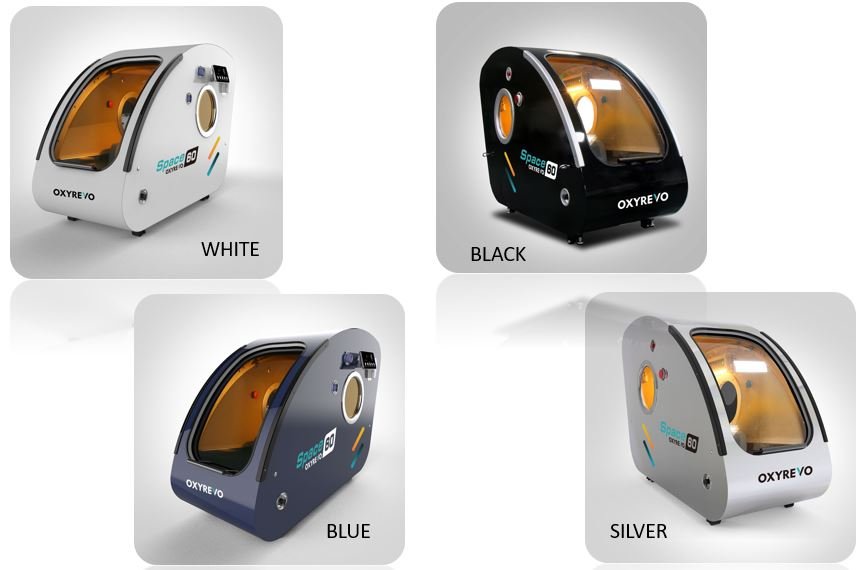

CHAMBER COLOR: WHITE / BLACK / SILVER / BLUE

3 YEAR WARRANTY – option to purchase extended warranty

OXYREVO Premium Design
Hard Type: Stainless Steel Material, Solid and Durable
Higher Pressure: 1.5ATA Standard, 1.6ATA Higher, Up to 2ATA
Solid Wheels: 4 x Solid Wheels at bottom, easy to move
Emergency Valve: Quick Pressure Release in 30s, safety in mind
Timing System: 0-120minutes automatic shutoff timer
LED Reading Light: Eyes Protected LED inside for Reading Conveniently
In-Out Communication System: Phone and Speaker Inside and Outside, allows communication easier
Custom Valve: All Valves are Custom Designed and Made by OxyRevo
Dual Air Filters: Two air filters in and out – Machine side and chamber side.
10L Large Oxygen Capacity: 1-10L/min adjustable Oxygen Concentrator with 90-97% Oxygen continuous production, no need for oxygen tanks.
Internal/External Dual Pressure Display: Pressure Readings Available Inside and Outside
Internal/External Operation Control: Control Panel and Pressure Release Available Inside and Outside
Air Flow Compressor 85L/min: Oil free no maintenance air compressor
Air Cooler 120L/min: remove humidity from within the chamber effectively, no maintenance

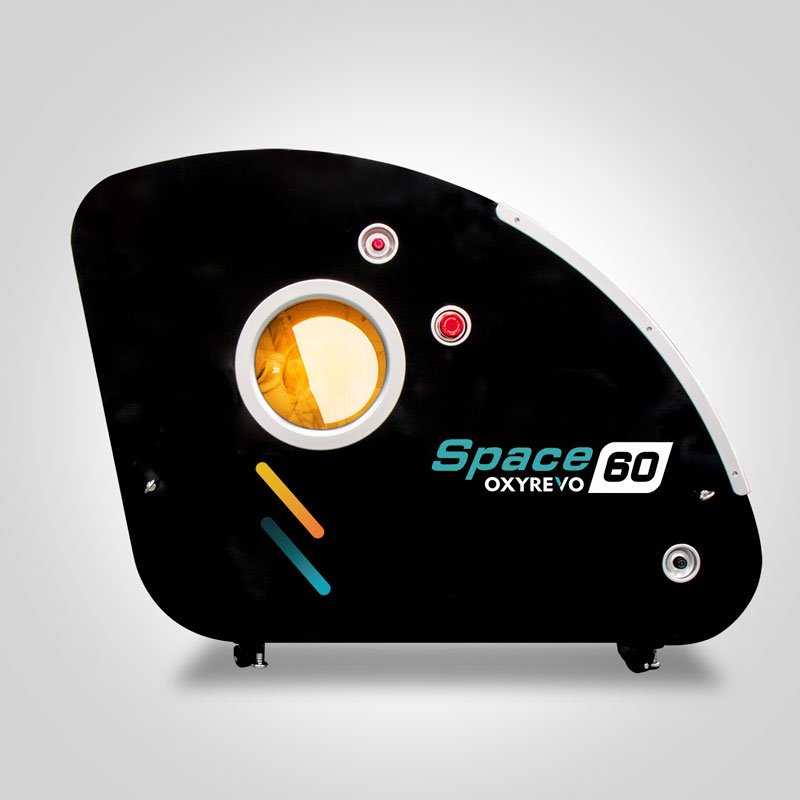

Transparent Windows Each End
OxyRevo offers a unique design with two large transparent windows located at the head and foot ends of the hyperbaric oxygen chamber. Made with aviation-grade materials and double-layered for added durability, the windows provide a larger field of view both inside and outside the chamber. Offering a more comfortable experience and reduces feelings of claustrophobia.
New Advanced Welding Process
New advanced welding and splicing processes perfectly fit the metal and polycarbonate together, and the outside is reinforced by an aluminium ring, which is firm, beautiful and won’t deform with use. Chamber body is welded by 3 pieces of different thickness stainless steel together, thus higher strength for higher pressure resistance at no bending risk for overtime use unlike others do.

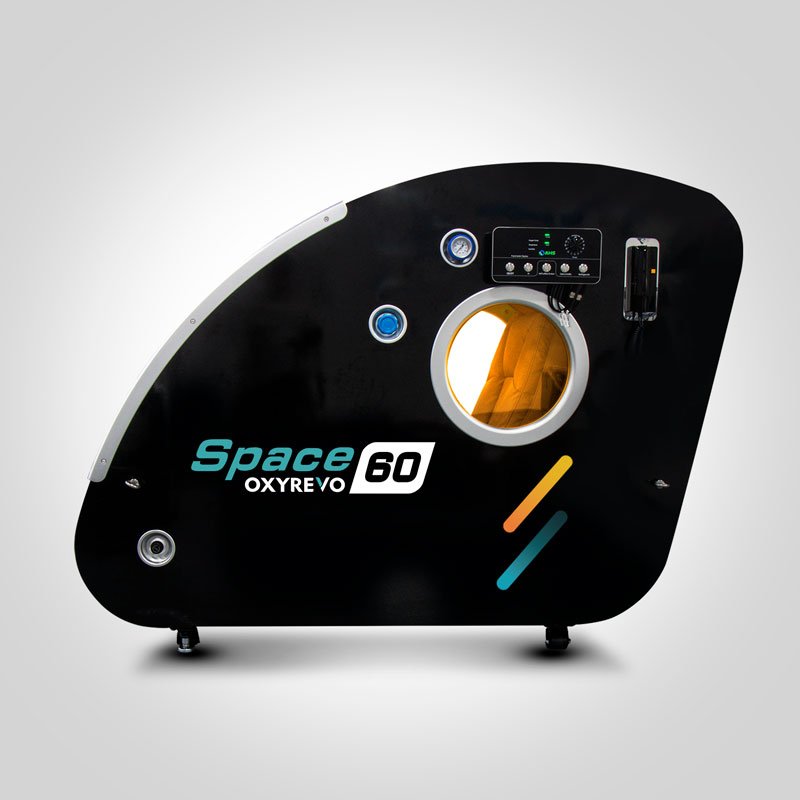

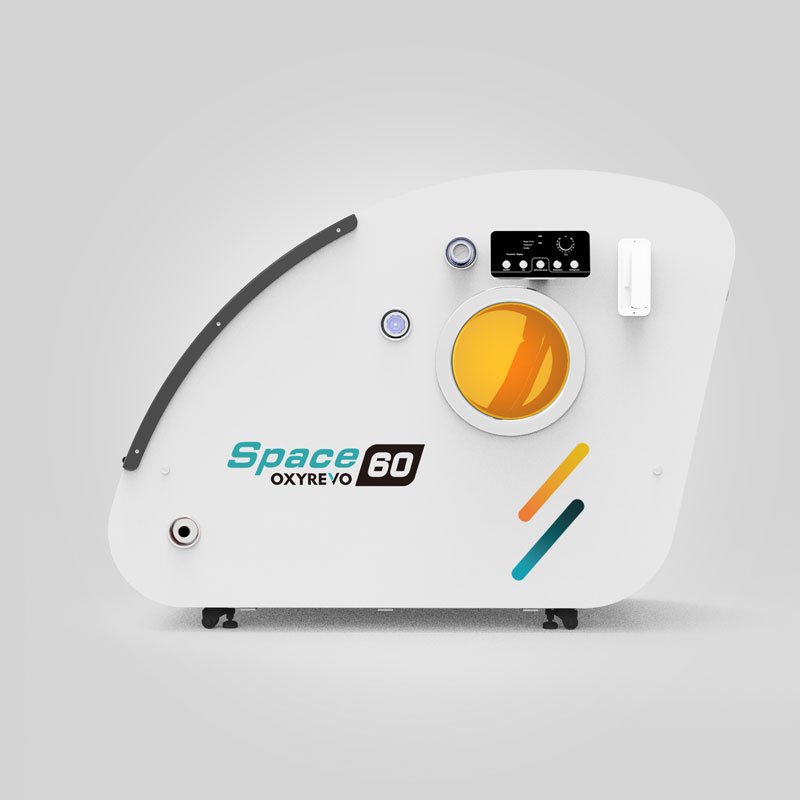

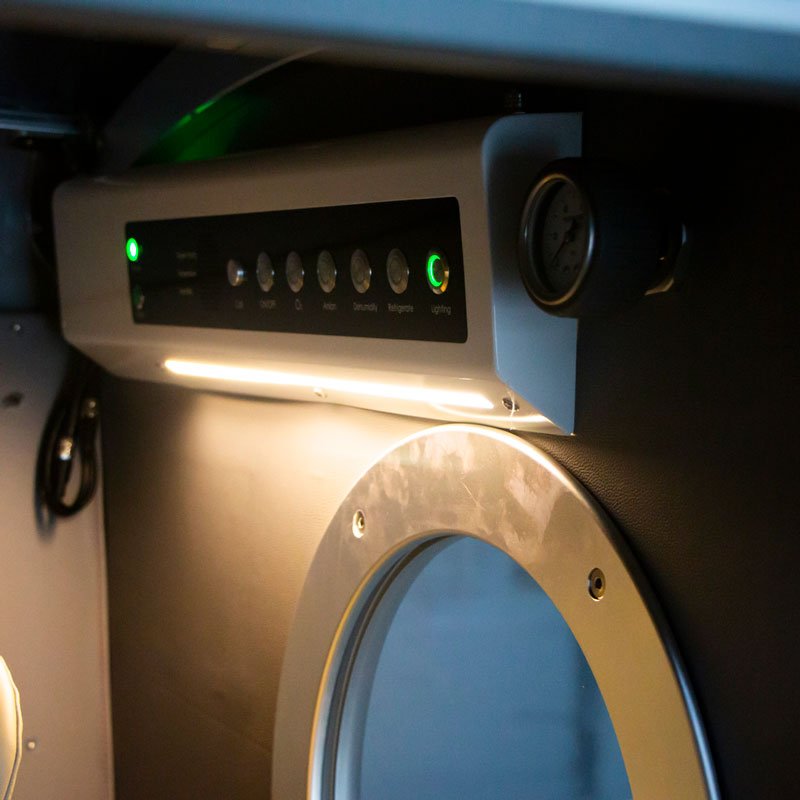

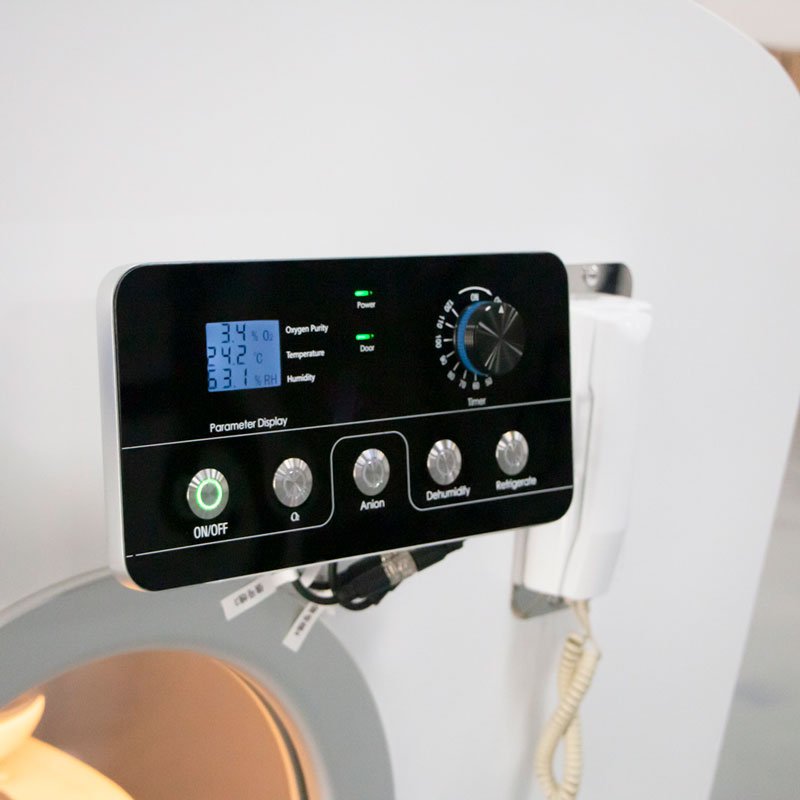

In-Out Control Panel And Screen
All the hard hyperbaric chambers have two control panels inside and outside, allows you o operate the chamber yourself, no further assistance required. Also dual digital display screens inside and out show data of Temperature, Humidity, and Oxygen Purity inside the chamber via a highly precise sensor, making your operation more convenient.
Power Failure Safety System
A power failure safety system in the unit gives a safe use if the power shuts off suddenly. The system in the hard chamber will release the pressure automatically and slowly when power shuts off suddenly while the users are completely sleeping. The door will be dropped down automatically after chamber pressure released, making the chamber even safer to use.
Smart Door Sensor
Operating the hyperbaric chambers with an incompletely closed door poses a safety risk that may result in harm to oneself or damage to the chamber. Our Quest Hard Hyperbaric Chamber addresses this issue by incorporating a sensor lock feature that restricts operation of the chamber until the door is fully closed. Additionally, there are indicator lights located inside and outside the chamber, further enhancing its safety features.
Working Pressures Adjustable
The OxyRevo pressure switch valve, featuring an exclusive design, allows users to adjust the working pressure of the chamber to various levels ranging from for example 1.3/1.4/1.5/1.6ATA (or any pressure levels you like to set up) with the simple press of a valve. This unique feature enables all the users to initiate their hyperbaric oxygen therapy at a lower pressure levels and gradually work their way up to higher levels, ensuring a more controlled and comfortable experience for your HBOT treatment in an easy way.
Efficient Air Cooling System
Our efficient and powerful air conditioning system will remove the humidity inside the chamber, giving dry and clean air to the chamber, also cooling the air, ensuring a better cool and comfortable experience when using the chamber in the summer. Additionally, this system is electrically driven, eliminating the need for ice water or Freon and requiring zero maintenance. This feature adds to the comfort and overall pleasantness of using the chamber.
Anion Air Purification And Sterilization
The inclusion of an anion generator within the chamber ensures the effective dispersion of anions that are capable of removing 2.5 micron dust particles (PM2.5). This helps to purify the air within the chamber, resulting in a cleaner and fresher environment. Also a sterilizer with water nano technology to remove bacteria and heavy smell, and also kill any virus. A perfect solution for disinfection for commercial places like therapy centers and clinics.

Inclusions:
–Chamber:

Inside/outside Pressure Gauges/Pressure Deflate Valves/Control Panels/Display Screen.

Phone Communication System.

Presure Relief Valves.

Pressure Adjustable Switch.

Reading Lighting Led.

Wheels.

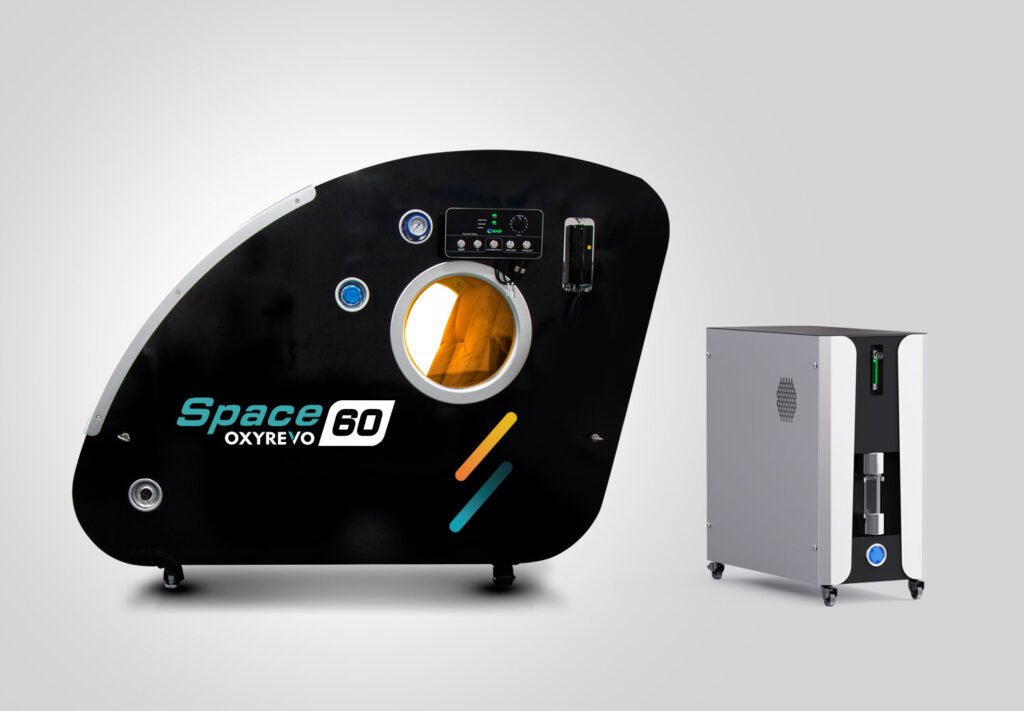

–All-in-one Operating Unit Machine:

1x Oil Free Air Compressor.

1x 10L Oxygen Concentrator.

2x Cooling Machines.

Anion Air Purifier.

Air Sterilizer/Anti-virus System.

Air Filter.

Humidity Water Container.

–Accessories:

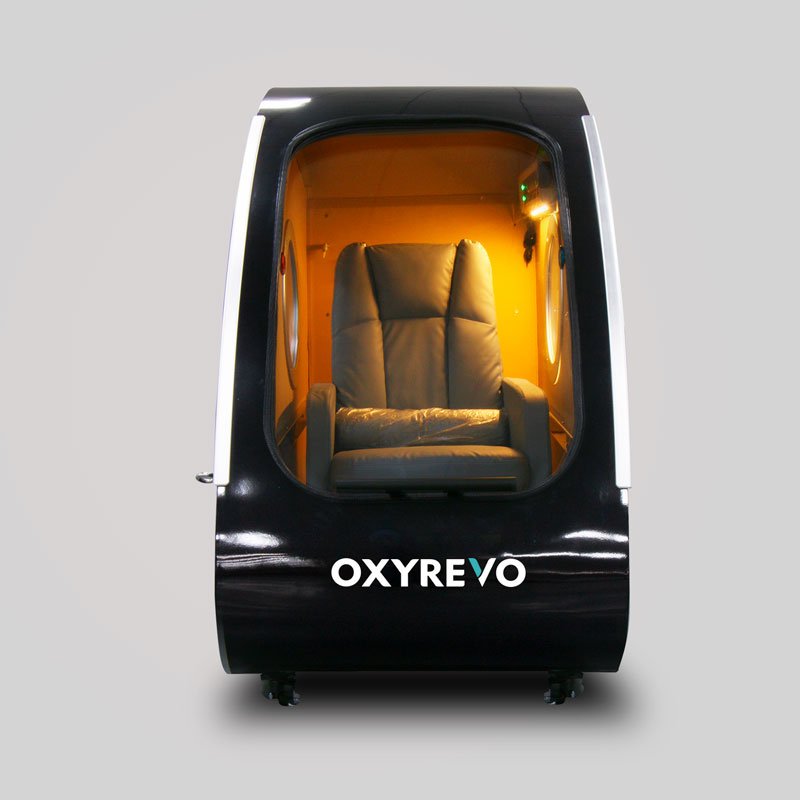

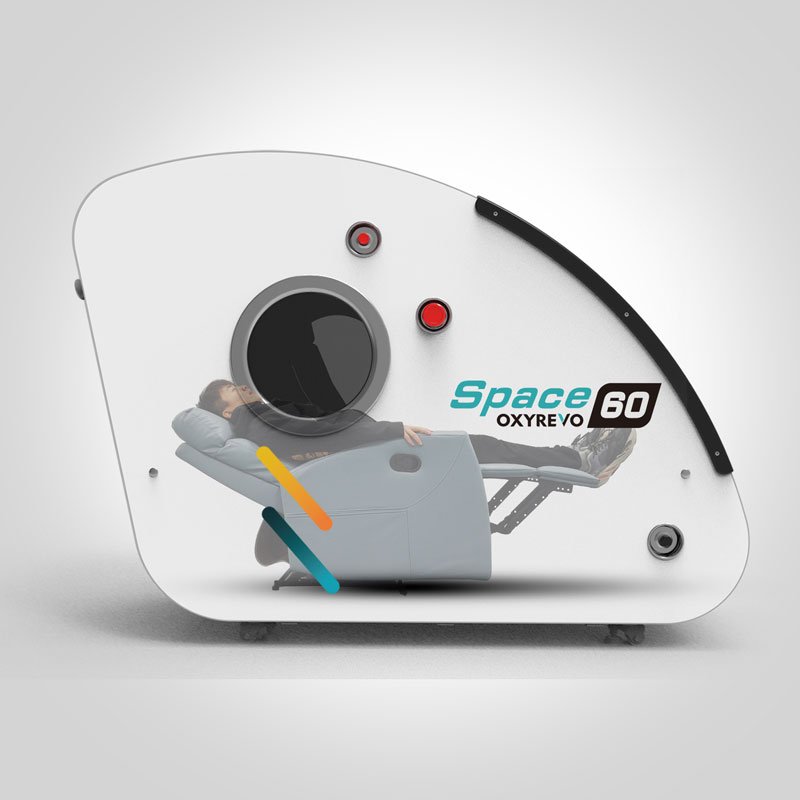

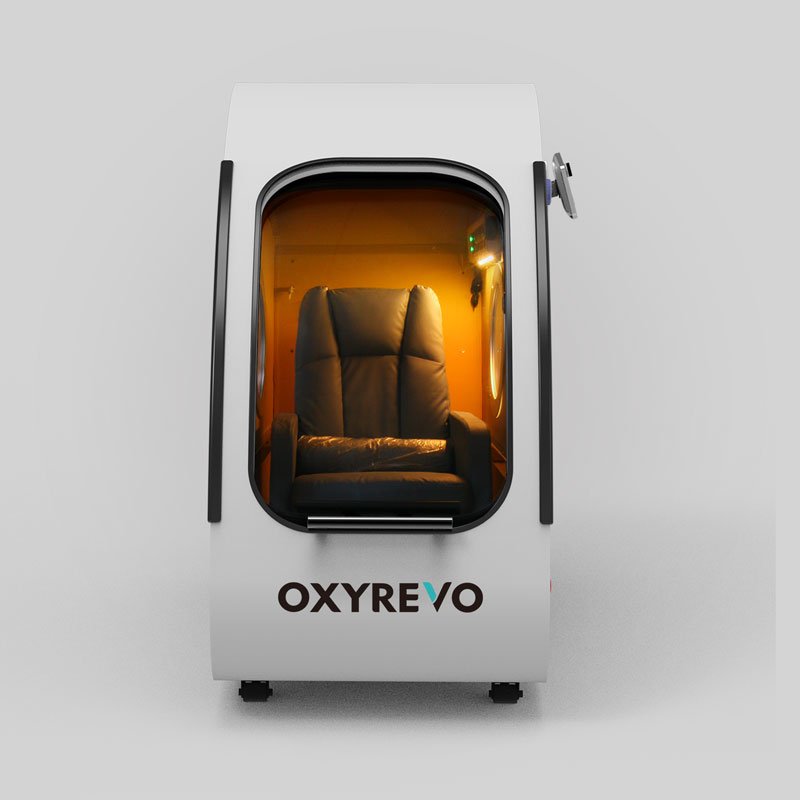

A Premium Folding Chair for Sitting down or Recline.

Oxygen Mask/Spare Filters/Fuses

Air/Oxygen Tubes/Power Cable.

OPTIONAL: INFRARED RED LIGHT THERAPY DEVICE, INTERNAL FAN, POWER PORTAL (allows for a power cord connection inside the chamber)



PAYMENT TERMS: Please note payment in full required prior to commencement of production of your order. Finance options available from as little as $50 per week. Please click here for finance options using our partner Handypay. Please note chambers are made to order and expected delivery is 4-8weeks. Delivery is door-to-door service. The freight company will deliver to the driveway however will not assist with transferring into the building or assist with installation. *Shipping fee is included in the price, however should an address require increased requirements for shipping we will contact you first (for example, if the chamber can not be delivered to a driveway or garage easily). Customs fees/taxes are included in the price.

When ordering your chamber please include shipping address, email and mobile phone for freight company. Contact us on WhatsApp +61 0400 435 269 or email oxyrevo@discoveryphysio.com.au.
